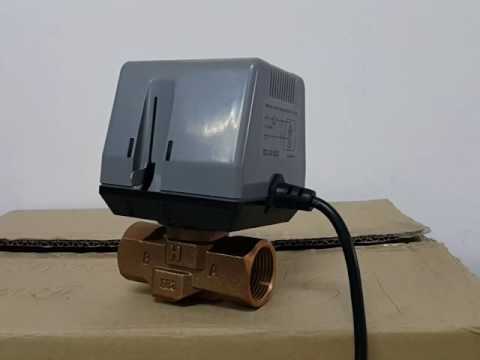

HONEYWELL VC6013 MOTORISED CONTROL VALVE
HONEYWELL VC6013 MOTORISED CONTROL VALVE
Application
Honeywell VC Series balanced 2-position hydronic valves are
used in domestic and small commercial heating and cooling
applications to control the flow of hot and/or cold water. They
consist of an actuator, valve and a cartridge assembly
2-way valves are designed for on-off zone control of domestic
systems. 3-way valves can be piped for either diverting or
mixing valve applications in domestic central heating and/or
cooling systems.
Both versions can be used to control individual fan coil, radiator, space heater or convector applications.
Depending on the model selected they can be controlled by a low or line voltage SPST or SPDT controller such
as a room thermostat, aquastat or flow switch.
Specifications Medium
- Water or water-glycol mixture (max. 50% glycol content),
- quality to VDI 2035
pH-value
8...9.5
Operating temperature
- 1...95°C (34...203°F)
- 120°C (248°F) short duration peak
- max. 65°C (149°F)
- max. 20 bar (290 psi) static
- max. 100 bar (1,450 psi) burst
- max. 4 bar (58 psi)
- see chapter “Dimensions” below
- 2-way: flow can be in either direction. When actuator is not mounted valve is in closed position
- 3-way: bottom port is marked AB. End ports are marked A and B. When actuator is not mounted port A is closed.
Design
VC Series zone valves consist of:
• 2-way or 3-way valve housing available with various connection ends
• Spindle and cartridge assembly
• Actuator with cable or MolexTM socket
• Pipe fittings (most versions)
Materials
• Valve housing made of bronze
• Spindle made of stainless steel
• Cartridge made of RytonTM (polyphenylene sulphide) and NorylTM (polyphenylene oxide)
• O-ring seals made of EPDM rubber
• Actuator cover made of NorylTM (94V-0)
• Actuator base made of RytonTM (94V-0)
