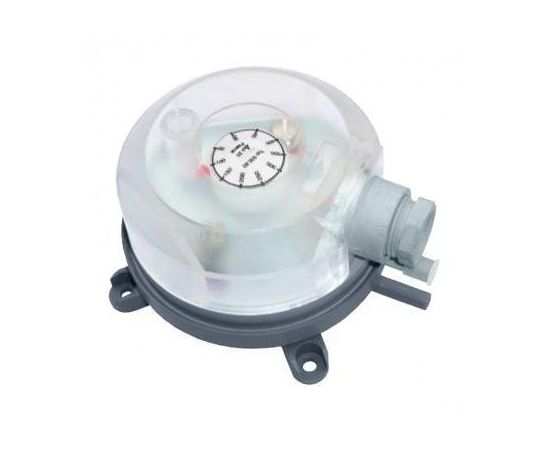

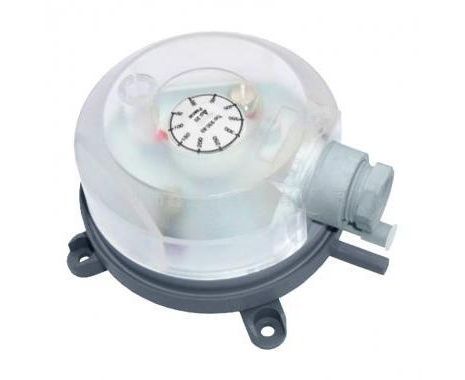

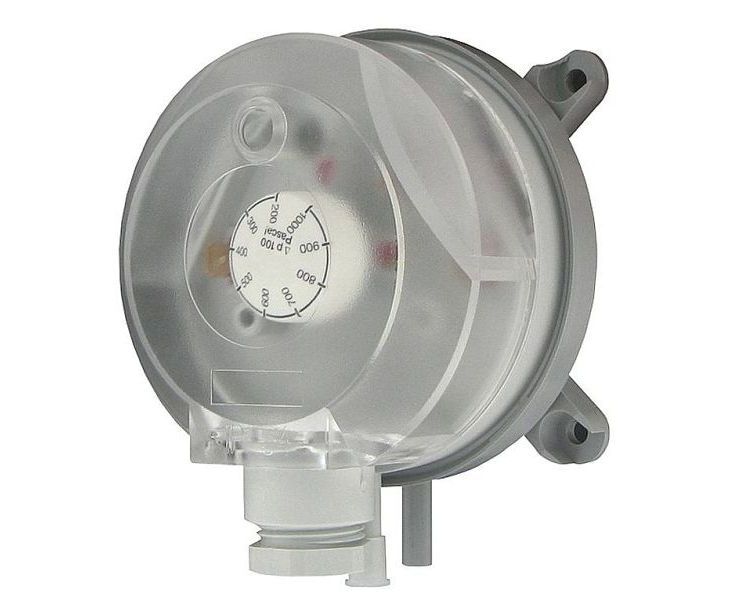

Differential Pressure Switch DPS1000
APPLICATION
Differential pressure switches e.g. for monitoring filter, fan, fire damper, or air flow status of air handling systems.
BENEFITS
• Switching-point easily adjustable with scale in Pascal;
• Direction of M20x1.5 conduit entry can be rotated in steps of 120°;
• Only one screw needed for housing cover.
APPROVALS
• CE approval according to low-voltage directive 2006/95/EC;
• Switch according to VDE 0630;
• EC Gas Appliance Directive 90/396/EEC according to DIN EN 1854 (Nov. 01, 1997)
• ROHS 2002/95/EC
Additional info
Capacity:
1000 (Pa)
Material:
Silicone
Appearance
Shape:
ROUND
Brand
Brand:
Honeywell
Technical details
Max. Pressure:
1000 Pa
Operating temperature:
-20...+85 °C
Rated voltage:
1.5 A, (0.4) /250 Vac
