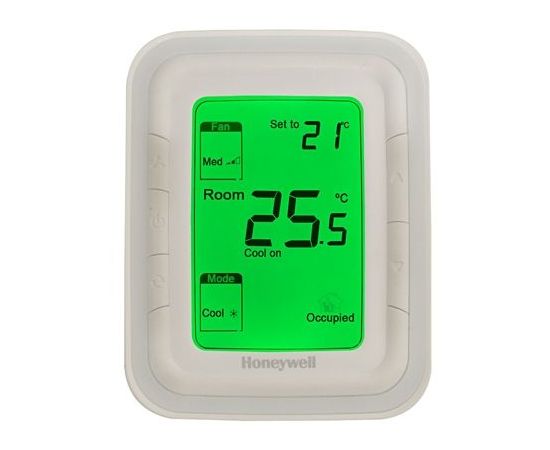

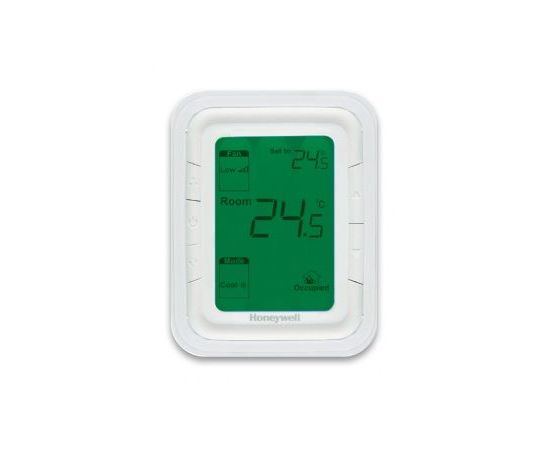

LCD Digital Thermostat T6861V2WG-M

AED120.00

10 days
+

Minimum quantity for "LCD Digital Thermostat T6861V2WG-M" is 1.

Add to wish list
HDS1
Accuracy+/-1o C at 21o C Application Type/Use LocationCommercial/Residence BrandHoneywell Max. CapacityFor 220V power supply: 4(3)A for fan load, 2(1)A for zone valve Measuring accuracy of relative humidity5~90% Voltage230 ± 10% VAC

Application


T6861 digital thermostats are designed for
application of 3-speed fan and valves in fan coil
system.
Including:
2-pipe cool only/heat only/manual changeover
Ventilation mode
Manual or automatic 3-speed fan control
Water valve control
Fan speed can be selected to automatic or manual
3-speed control mode.
In ventilation mode, fan only support manual speed
control.



Features


• Super modern appearance design, suitable for office, hotel and residential building
• Horizontal and vertical model available for variant application
• Slim design, direct installation on 3" x 3" size box
• Stylish and elegant blue/green backlight with blue/ green/ white colour ring
• Big LCD display with English and icons
• Easy to install and set-up
• Time on/off function
• Selectable room temperature or setpoint display
• Manual or automatic fan speed selection
• Energy saving mode activation by button press or dry contact (key card)
• Cycle per Hour (CPH) function
• Adjustment of display room temperature
• Temperature unit either o C or o F
• User setting can be kept when power off
• Freezing protection function available
• Lock or unlock keys or part of keys in Installer Setup
• Heat and cool setpoint limitation for energy saving

Brand
Brand:
Honeywell
Functional Level
Application Type/Use Location:
Commercial/Residence
Main features
Accuracy:
+/-1o C at 21o C
Technical details
Max. Capacity:
For 220V power supply: 4(3)A for fan load, 2(1)A for zone valve
Measuring accuracy of relative humidity:
5~90%
Operating temperature:
18~49 Degree C
Voltage:
230 ± 10% VAC
+
